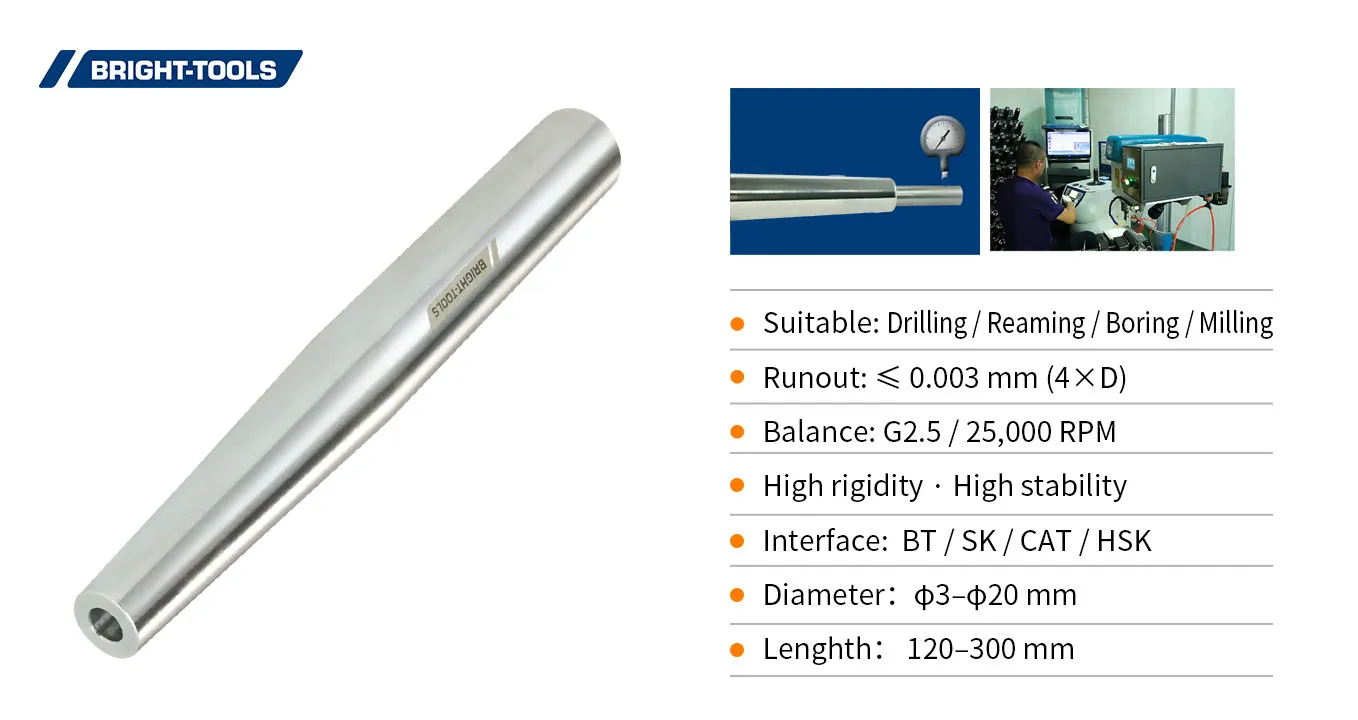

Стандартный термоусадочный патрон использует термостойкую горячую сталь для зажима инструментов из быстрорежущей стали и твердого карбида с помощью теплового расширения стали. Точность 0003 мм и точные допуски на конус улучшают срок службы инструмента, а последующая точная балансировка обеспечивает лучшее качество поверхности и низкий износ шпинделя станка.
| Размер | Д | Д1 | Д2 | Д | Л | L1 | L2 | Н | Г | Рисунок |
| C12-SFS03-120 | 3 | 9 | 11,8 | 12 | 120 | - | 73 | - | - | 1 |
| C12-SFS04-120 | 4 | 10 | 11,8 | 12 | 120 | - | 73 | - | - | 1 |
| C12-SFS05-120 | 5 | 11 | 11,8 | 12 | 120 | - | 73 | - | - | 1 |
| C12-SFS06-120 | 6 | 12 | 17 | 12 | 120 | 36 | 73 | 10 | М5 | 3 |
| C12-SFS08-120 | 8 | 14 | 19 | 12 | 120 | 36 | 73 | 10 | М6 | 3 |
| C16-SFS03-120 | 3 | 9 | 13 | 16 | 120 | - | 70 | - | - | 1 |
| C16-SFS04-120 | 4 | 10 | 14 | 16 | 120 | - | 70 | - | - | 1 |
| C16-SFS05-120 | 5 | 11 | 15 | 16 | 120 | - | 70 | - | - | 1 |
| C16-SFS06-120 | 6 | 12 | 15,8 | 16 | 120 | 36 | 70 | 10 | М5 | 2 |
| C16-SFS08-120 | 8 | 14 | 19 | 16 | 120 | 36 | 70 | 10 | М6 | 3 |
| C20-SFS03-120 | 3 | 9 | 13 | 20 | 120 | - | 68 | - | - | 1 |
| C20-SFS04-120 | 4 | 10 | 14 | 20 | 120 | - | 68 | - | - | 1 |
| C20-SFS05-120 | 5 | 11 | 15 | 20 | 120 | - | 68 | - | - | 1 |
| C20-SFS06-120 | 6 | 12 | 16 | 20 | 120 | 36 | 68 | 10 | М5 | 1 |
| C20-SFS08-120 | 8 | 14 | 19 | 20 | 120 | 36 | 68 | 10 | М6 | 1 |
| C20-SFS10-120 | 10 | 16 | 19,8 | 20 | 120 | 42 | 68 | 10 | М8х1 | 1 |
| C20-SFS12-120 | 12 | 18 | 19,8 | 20 | 120 | 68 | 10 | M10x1 | 1 | |
| C12-SFS03-160 | 3 | 9 | 11,8 | 12 | 160 | - | 113 | - | - | 1 |
| C12-SFS04-160 | 4 | 10 | 11,8 | 12 | 160 | - | 113 | - | - | 1 |
| C16-SFS03-160 | 3 | 9 | 13 | 16 | 160 | - | 110 | - | - | 1 |
| C16-SFS04-160 | 4 | 10 | 14 | 16 | 160 | - | 110 | - | - | 1 |
| C16-SFS05-160 | 5 | 11 | 15 | 16 | 160 | - | 110 | - | - | 1 |
| C20-SFS05-160 | 5 | 11 | 15 | 20 | 160 | - | 110 | - | - | 1 |
| C20-SFS06-160 | 6 | 12 | 16 | 20 | 160 | 36 | 108 | 10 | М5 | 1 |
| C20-SFS08-160 | 8 | 14 | 19 | 20 | 160 | 36 | 108 | 10 | М6 | 1 |
| C25-SFS08-160 | 8 | 14 | 19 | 25 | 160 | 36 | 108 | 10 | М6 | 1 |
| C25-SFS10-160 | 10 | 16 | 21 | 25 | 160 | 42 | 108 | 10 | М8х1 | 1 |
| C25-SFS12-160 | 12 | 18 | 23 | 25 | 160 | 47 | 108 | 10 | M10x1 | 1 |
| C25-SFS14-160 | 14 | 20 | 24,8 | 25 | 160 | 47 | 108 | 10 | M10x1 | 1 |
| C25-SFS16-160 | 16 | 22 | 24,8 | 25 | 160 | 50 | 108 | 10 | М12х1 | 1 |
| C32-SFS10-160 | 10 | 16 | 21 | 32 | 160 | 42 | 98 | 10 | М8х1 | 1 |
| C32-SFS12-160 | 12 | 18 | 23 | 32 | 160 | 47 | 98 | 10 | M10x1 | 1 |
| C32-SFS14-160 | 14 | 20 | 25 | 32 | 160 | 47 | 98 | 10 | M10x1 | 1 |
| 16 | 22 | 28 | 32 | 160 | 50 | 98 | 10 | М12х1 | 1 | |
| C32-SFS18-160 | 18 | 25 | 30 | 32 | 160 | 50 | 98 | 10 | М12х1 | 1 |
| C32-SFS20-160 | 20 | 26 | 31,8 | 32 | 160 | 52 | 98 | 10 | М16х1 | 1 |
| C16-SFS03-200 | 3 | 9 | 13 | 16 | 200 | - | 150 | - | - | 1 |
| C16-SFS04-200 | 4 | 10 | 14 | 16 | 200 | - | 150 | - | - | 1 |
| C16-SFS05-200 | 5 | 11 | 15 | 16 | 200 | - | 150 | - | - | 1 |
| C16-SFS06-200 | 6 | 12 | 15,8 | 16 | 200 | 36 | 150 | 10 | М5 | 1 |
| C16-SFS08-200 | 8 | 14 | 19 | 16 | 200 | 36 | 150 | 10 | М6 | 3 |
| C20-SFS04-200 | 4 | 10 | 14 | 20 | 200 | - | 148 | - | - | 1 |
| C20-SFS06-200 | 6 | 12 | 16 | 20 | 200 | 36 | 148 | 10 | М5 | 1 |
| C20-SFS08-200 | 8 | 14 | 19 | 20 | 200 | 36 | 148 | 10 | М6 | 1 |
| C20-SFS10-200 | 10 | 16 | 19,8 | 20 | 200 | 42 | 148 | 10 | М8х1 | 1 |
| C20-SFS06-250 | 6 | 12 | 16 | 20 | 250 | 36 | 198 | 10 | М5 | 1 |
| C20-SFS08-250 | 8 | 14 | 19 | 20 | 250 | 36 | 198 | 10 | М6 | 1 |
| C20-SFS10-250 | 10 | 16 | 19,8 | 20 | 250 | 42 | 198 | 10 | М8х1 | 1 |
| C25-SFS12-250 | 12 | 18 | 23 | 25 | 250 | 47 | 192 | 10 | M10x1 | 1 |
| C25-SFS16-250 | 16 | 22 | 25 | 250 | 50 | 192 | 10 | М12х1 | 1 |
