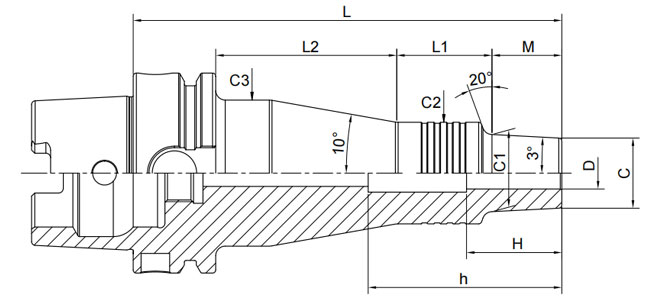

Размер | Д | С | Л | М | L1 | С1 | С2 | H | H |
HSK40A-SFRA3-65-M22 | 3 | 7,5 | 65 | 22 | 23 | 9,8 | 25 | 9 | 44 |
HSK40A-SFRA3-85-M42 | 3 | 7,5 | 85 | 42 | 23 | 11,9 | 25 | 9 | 64 |
HSK40A-SFRA4-65-M22 | 4 | 10 | 65 | 22 | 23 | 12,3 | 25 | 12 | 44 |
HSK40A-SFRA4-85-M42 | 4 | 10 | 85 | 42 | 23 | 14,4 | 25 | 12 | 64 |
HSK40A-SFRA6-65-M22 | 6 | 12 | 65 | 22 | 23 | 14,3 | 25 | 18 | 44 |
HSK40A-SFRA6-85-M42 | 6 | 12 | 85 | 42 | 23 | 16,4 | 25 | 18 | 64 |
HSK40A-SFRA8-65-M22 | 8 | 14 | 65 | 22 | 23 | 16,3 | 25 | 24 | 44 |
HSK40A-SFRA8-85-M42 | 8 | 14 | 85 | 42 | 23 | 18,4 | 25 | 24 | 64 |
HSK40A-SFRA10-65-M22 | 10 | 16 | 65 | 22 | 23 | 18,3 | 25 | 30 | 44 |
HSK40A-SFRA10-90-M42 | 10 | 16 | 90 | 42 | 28 | 20,4 | 32 | 30 | 60 |
HSK40A-SFRA12-65-M22 | 12 | 20 | 65 | 22 | 23 | 22,3 | 25 | 30 | 44 |
HSK40A-SFRA16-65-M22 | 16 | 26 | 65 | 22 | 23 | 28,3 | 34 | 32 | 43 |
HSK40A-SFRA20-70-M50 | 20 | 32 | 70 | 50 | - | 34 | - | 38 | 48 |
Размер | Д | С | Л | М | L1 | С1 | С2 | H | H |
HSK50A-SFRA3-75-M22 | 3 | 7,5 | 75 | 22 | 27 | 9,8 | 25 | 9 | 49 |
HSK50A-SFRA3-95-M42 | 3 | 7,5 | 95 | 42 | 27 | 11,9 | 25 | 9 | 69 |
HSK50A-SFRA3-125-M42 | 3 | 7,5 | 125 | 42 | 57 | 11,9 | 25 | 9 | 100 |
HSK50A-SFRA4-75-M22 | 4 | 10 | 75 | 22 | 27 | 12,3 | 25 | 12 | 49 |
HSK50A-SFRA4-95-M42 | 4 | 10 | 95 | 42 | 27 | 14,4 | 25 | 12 | 69 |
HSK50A-SFRA4-125-M42 | 4 | 10 | 125 | 42 | 57 | 14,4 | 25 | 12 | 99 |
Размер | Д | С | Л | М | L1 | С1 | С2 | H | H |
HSK63A-SFRA3-75-M22 | 3 | 7,5 | 75 | 22 | 27 | 9,8 | 25 | 9 | 50 |
HSK63A-SFRA3-95-M42 | 3 | 7,5 | 95 | 42 | 27 | 11,9 | 25 | 9 | 70 |
HSK63A-SFRA3-105-M22 | 3 | 7,5 | 105 | 22 | 57 | 9,8 | 26 | 9 | 80 |
HSK63A-SFRA3-120-M67 | 3 | 7,5 | 120 | 67 | 27 | 14,5 | 26 | 9 | 95 |
HSK63A-SFRA3-125-M42 | 3 | 7,5 | 125 | 42 | 57 | 11,9 | 26 | 9 | 100 |
HSK63A-SFRA3-150-M67 | 3 | 7,5 | 150 | 67 | 57 | 14,5 | 25 | 9 | 125 |
HSK63A-SFRA3-150-M97 | 3 | 7,5 | 150 | 97 | 27 | 17,7 | 25 | 9 | 125 |
HSK63A-SFRA3-180-M97 | 3 | 7,5 | 180 | 97 | 57 | 17,7 | 26 | 9 | 155 |
HSK63A-SFRA3-180-M127 | 3 | 7,5 | 180 | 127 | 27 | 20,8 | 36 | 9 | 155 |
HSK63A-SFRA3-210-M127 | 3 | 7,5 | 210 | 127 | 57 | 20,8 | 36 | 9 | 185 |
HSK63A-SFRA4-75-M22 | 4 | 10 | 75 | 22 | 27 | 12,3 | 25 | 12 | 50 |
HSK63A-SFRA4-95-M42 | 4 | 10 | 95 | 42 | 27 | 14,4 | 25 | 12 | 70 |
HSK63A-SFRA4-105-M22 | 4 | 10 | 105 | 22 | 57 | 12,3 | 26 | 12 | 80 |
HSK63A-SFRA4-120-M67 | 4 | 10 | 120 | 67 | 27 | 17 | 25 | 12 | 95 |
HSK63A-SFRA4-125-M42 | 4 | 10 | 125 | 42 | 57 | 14,4 | 26 | 12 | 100 |
HSK63A-SFRA4-150-M67 | 4 | 10 | 150 | 67 | 57 | 17 | 26 | 12 | 125 |
HSK63A-SFRA4-150-M97 | 4 | 10 | 150 | 97 | 27 | 20,2 | 25 | 12 | 125 |
HSK63A-SFRA4-180-M97 | 4 | 10 | 180 | 97 | 57 | 20,2 | 26 | 12 | 155 |
HSK63A-SFRA4-180-M127 | 4 | 10 | 180 | 127 | 27 | 23,3 | 36 | 12 | 155 |
HSK63A-SFRA4-210-M127 | 4 | 10 | 210 | 127 | 57 | 23,3 | 36 | 12 | 185 |
