DIN 69893 Лицо держатель мельницы
HSKA-FMB Держатель торцевой фрезы-это своего рода держатель инструмента, специально используемый для торцевых фрез.
1. Хорошая жесткость.
2. Высокая эффективность резки.
3. Удобное управление.

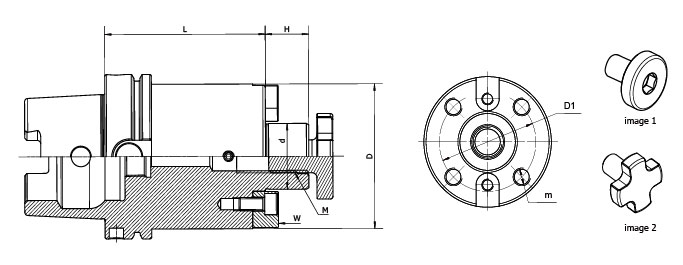

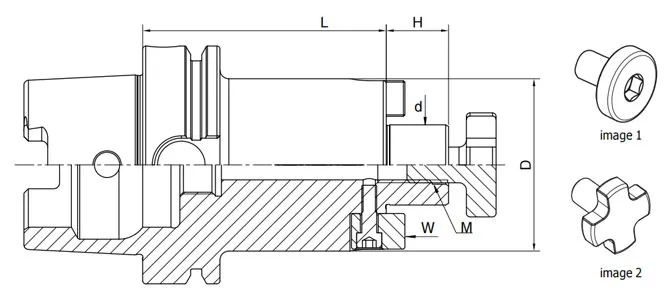

Размер | Д | Д | H | Л | М |
HSK50A-FMB16-50 | 16 | 38 | 17 | 50 | М8 |
HSK50A-FMB22-60 | 22 | 48 | 19 | 60 | М10 |
HSK50A-FMB27-60 | 27 | 58 | 21 | 60 | М12 |
HSK50A-FMB32-60 | 32 | 78 | 24 | 60 | М16 |
HSK63A-FMB16-50 | 16 | 38 | 17 | 50 | М8 |
HSK63A-FMB22-50 | 22 | 48 | 19 | 50 | М10 |
HSK63A-FMB27-60 | 27 | 58 | 21 | 60 | М12 |
HSK63A-FMB32-60 | 32 | 78 | 24 | 60 | М16 |
HSK63A-FMB40-60 | 40 | 88 | 27 | 60 | М20 |
HSK63A-FMB16-100 | 16 | 38 | 17 | 100 | М8 |
HSK63A-FMB22-100 | 22 | 48 | 19 | 100 | М10 |
HSK63A-FMB27-100 | 27 | 58 | 21 | 100 | М12 |
HSK63A-FMB32-100 | 32 | 78 | 24 | 100 | М16 |
HSK63A-FMB40-100 | 40 | 88 | 27 | 100 | М20 |
HSK63A-FMB16-160 | 16 | 38 | 17 | 160 | М8 |
HSK63A-FMB22-160 | 22 | 48 | 19 | 160 | М10 |
HSK63A-FMB27-160 | 27 | 58 | 21 | 160 | М12 |
HSK63A-FMB32-160 | 32 | 78 | 24 | 160 | М16 |
HSK63A-FMB40-160 | 40 | 88 | 27 | 160 | М20 |
HSK63A-FMB16-200 | 16 | 38 | 17 | 200 | М8 |
HSK63A-FMB22-200 | 22 | 48 | 19 | 200 | М10 |
HSK63A-FMB27-200 | 27 | 58 | 21 | 200 | М12 |
HSK63A-FMB32-200 | 32 | 78 | 24 | 200 | М16 |
HSK63A-FMB40-200 | 40 | 88 | 27 | 200 | М20 |
HSK80A-FMB22-50 | 22 | 48 | 19 | 50 | М10 |
HSK80A-FMB27-50 | 27 | 58 | 21 | 50 | М12 |
HSK80A-FMB32-60 | 32 | 78 | 24 | 60 | М16 |
HSK80A-FMB40-60 | 40 | 88 | 27 | 60 | М20 |
HSK100A-FMB22-50 | 22 | 48 | 19 | 50 | М10 |
HSK100A-FMB27-50 | 27 | 58 | 21 | 50 | М12 |
HSK100A-FMB32-60 | 32 | 78 | 24 | 60 | М16 |
HSK100A-FMB40-60 | 40 | 88 | 27 | 60 | М20 |
HSK100A-FMB60-70 | 60 | 129 | 25 | 70 | М30 |
HSK100A-FMB22-100 | 22 | 48 | 19 | 100 | М10 |
HSK100A-FMB27-100 | 27 | 58 | 21 | М12 | |
HSK100A-FMB32-100 | 32 | 78 | 24 | 100 | М16 |
HSK100A-FMB40-100 | 40 | 88 | 27 | 100 | М20 |
HSK100A-FMB22-160 | 22 | 48 | 19 | 160 | М10 |
HSK100A-FMB27-160 | 27 | 58 | 21 | 160 | М12 |
HSK100A-FMB32-160 | 32 | 78 | 24 | 160 | М16 |
HSK100A-FMB40-160 | 40 | 88 | 27 | 160 | М20 |
HSK100A-FMB22-200 | 22 | 48 | 19 | 200 | М10 |
HSK100A-FMB27-200 | 27 | 58 | 21 | 200 | М12 |
HSK100A-FMB32-200 | 32 | 78 | 24 | 200 | М16 |
HSK100A-FMB40-200 | 40 | 88 | 27 | 200 | М20 |
HSK100A-FMB22-250 | 22 | 48 | 19 | 250 | М10 |
HSK100A-FMB27-250 | 27 | 58 | 21 | 250 | М12 |
HSK100A-FMB32-250 | 32 | 78 | 24 | 250 | М16 |
HSK100A-FMB40-250 | 40 | 88 | 27 | 250 | М20 |
HSK100A-FMB22-300 | 22 | 48 | 19 | 300 | М10 |
HSK100A-FMB27-300 | 27 | 58 | 21 | 300 | М12 |
HSK100A-FMB32-300 | 32 | 78 | 24 | 300 | М16 |
HSK100A-FMB40-300 | 40 | 88 | 27 | 300 | М20 |
